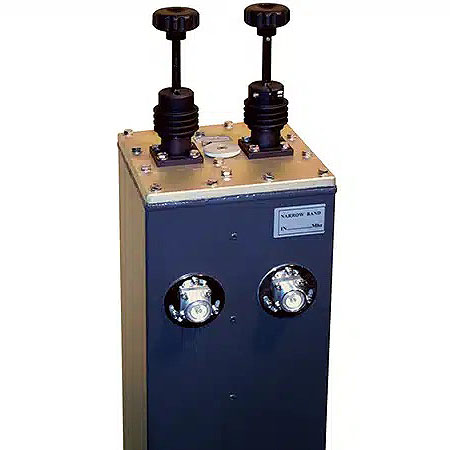

FDB/1001-M is a double coaxial cavity filter designed for FM broadcasting, featuring a quarter-wave high “Q” with variable coupling. When installed between the transmitter and antenna, it provides an output signal free from spurious emissions and ensures excellent isolation from other signals. The filter is made of aluminum with internal lines of silver-plated copper and PTFE insulators. It includes a bandwidth command for adjusting selectivity to meet specific operational requirements.
FEATURES
- DOUBLE COAXIAL CAVITY FILTER
HIGH “Q” WITH VARIABLE COUPLING
SPURIOUS-FREE OUTPUT SIGNAL
PERFECT ISOLATION FROM OTHER EMISSIONS
EXTERNAL BODY IN ALUMINUM
INTERNAL LINES IN SILVER-PLATED COPPER
PTFE INSULATORS
BANDWIDTH COMMAND FOR SELECTIVITY ADJUSTMENT
